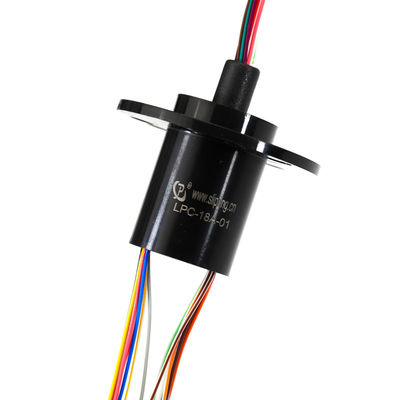

Name: Capsule Slip Ring Electrical Slip Ring, 18 Circuits 2A 240VAC 300rpm for Electrical Test Equipment
Brand: Capsule Slip Ring Electrical Slip Ring, 18 Circuits 2A 240VAC 300rpm for Electrical Test Equipment
SKU: LPC-18A-01
Rating: 4.7 (112 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: LPC-18A-01

Type: Electronic Accessories

Circuit Number: 18

Current Rating: 2A

Voltage: 240VAC

Working Speed: 0~300 rpm

Working Temperature: -20~+60â„ƒ

Style: Capsule slip ring

Основная информация

Model Number: LPC-18A-01

Оплата и доставка Условия

Характер продукции

Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from

22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Features:

Military standard surface processing
Precise
Gold-to-gold contact
Low resistance
Long service life

Options:

Rotating speed
Life span
Protection grade
Number of circuits
Current capacity
Size
Housing material
Mass produc-tion

Main applications:

High speed dome
Camera platform
Electrical testing equipment
Rotary table
Manufacturing and control equipment

Specification

Circuits	18
Current Rating	2A
Voltage	240VAC
Dielectric Strength	≥500V@50Hz between circuits
Insulation	100MΩ@500VDC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Wire Size	28# silver plated copper UL, Teflon
Lead Wire Length	Rotor:250mm; Stator:250mm
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Drawing

Product Display
